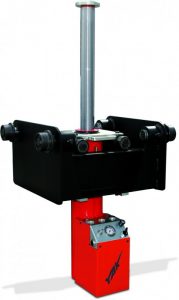

YAK 1620C – suspended pit jack

Suspended air hydraulic pit jack for lifting heavy vehicles or for the maintenance of speed and
differential gears.
We offer a wide range of models and customizations designed to meet all requirements. We offer 2
different hydraulic control units (EASY and TOP) as well as a hand pump and quick approach version.
Piston stroke ranges from 600 to 1200mm (23.62 – 47.24 in), with capacities of 5 to 20 t (6-22 ton).
Movement inside the pit is guaranteed by 4 rollers with bearings, supplied with the jacking beam.
Models 1620 and 1820 are only supplied with a customized jacking beam, made specifically for the
measurements of the customer’s pit. A comprehensive range of accessories is also available. Ideal for
workshops with pit.

Technical Data

Capacity: 20 t   /   22 ton
Net weight: 260 Kg   /   573 lb
Working air pressure: 8-10 bar   /   116-145 psi
Air consumption: 600 nl/min
Max stroke: 600 mm   /   23.6 in
Min. height: 775 mm   /   30.5 in
Number of pistons: 1
Pistons stroke: 600 mm   /   23.6 in

Jack applications

Semi Trailers
Special Vehicles
Lorries
Buses
Articulated Lorries
Lorry Mounted Cranes
Semi trailers
Road Tractors

Compatible accessories

A00221 – Jacking beam
A00208 – Cradle for gearboxes
A00207 – Cradle for gearboxes
A00206 – Cradle for gearboxes
A00218 – Joint
A01764 – Adapter
A01762 – Adapter
A01760 – Adapter
A01758 – Adapter
A01756 – Adapter
A01754 – Adapter

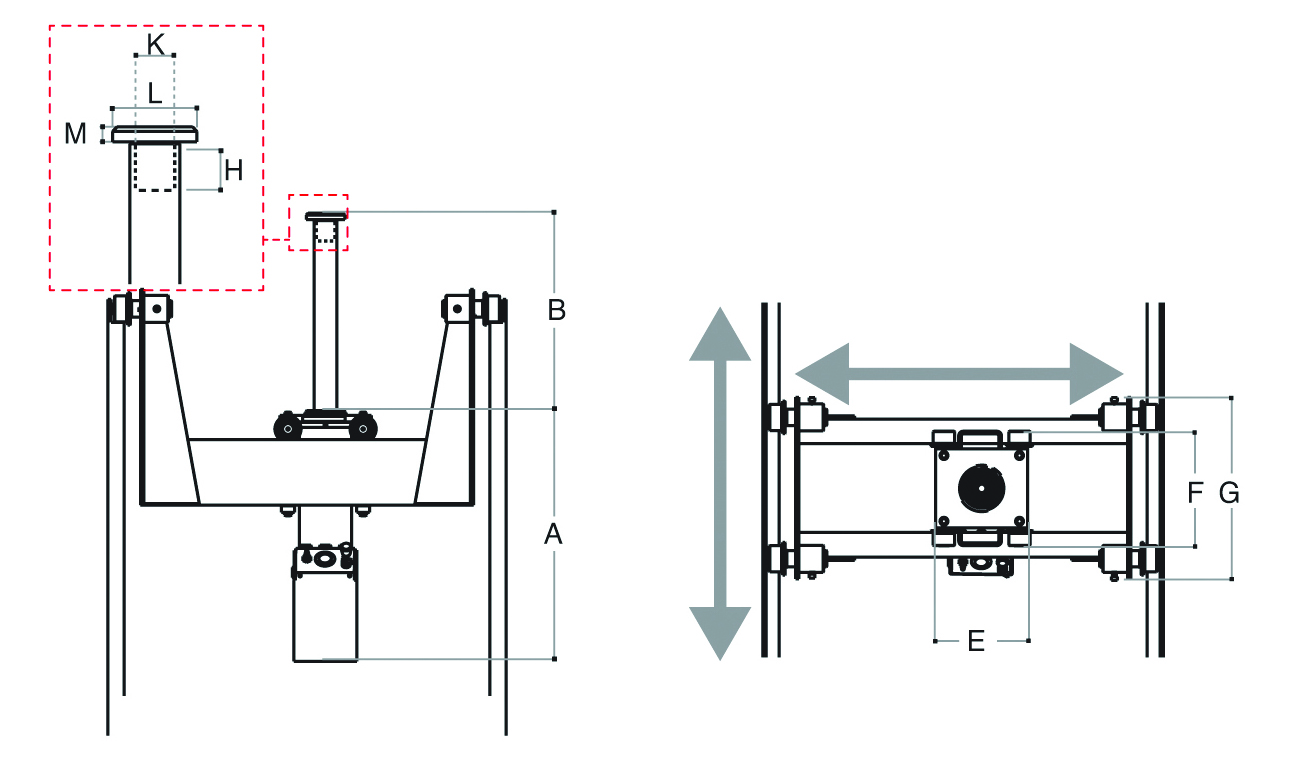

size and dimensions

A: 775 mm/t  /  30.51 in/ton
B: 600 mm/t  /  23.62 in/ton
C: –
D: –
E: 310 mm/t  /  12.2 in/ton
F: 350 mm/t  /  13.58 in/ton
G: 550 mm/t  /  21.65 in/ton
H: 60 mm/t  /  2.36 in/ton
K: 55 mm/t  /  2.17 in/ton
