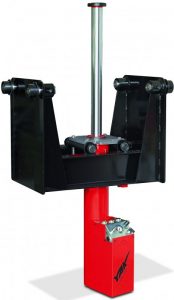

YAK 1815

Suspended air hydraulic pit jack, fully automatic, suitable for lifting heavy vehicles or for the assistance and maintenance of speed and differential gears.

There are 60 different models and customisations in our range, conceived and designed to meet all requirements. Standard jacking beams available in 3 different heights and 2 pistons with a stroke of 600 and 800 mm are for use with the 2 different control units (EASY and TOP). Movement inside the pit is guaranteed by 4 rollers with bearings, supplied with the jacking beam.

Models 1620 and 1820 are only supplied with a customised jacking beam, made with the measurements of the customer’s pit. Customisation of the jacking beam can be asked for on all the other models. A wide range of accessories is also available. Ideal for workshops with pits.


Technical Data

Capacity: 15 t   /   16.5 ton
Net weight: 280 Kg   /   617 lb
Working air pressure: 8-10 bar   /   116-145 psi
Air consumption: 600 nl/min
Max stroke: 800 mm   /   31.5 in
Min. height: 975 mm   /   38.4 in
Number of pistons: 1
Pistons stroke: 800 mm   /   31.5 in


Jack applications

Semi Trailers
Special Vehicles
Articulated Lorries
Lorry Mounted Cranes
Semi trailers
Road Tractors


Compatible accessories

A00221 – Jacking beam
A00208 – Cradle for gearboxes
A00207 – Cradle for gearboxes
A00206 – Cradle for gearboxes
A00218 – Joint
A01764 – Adapter
A01762 – Adapter
A01760 – Adapter
A01758 – Adapter
A01756 – Adapter
A01754 – Adapter

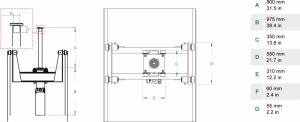

size and dimensions
