YAK 418/N – air hydraulic jack

Air hydraulic jacks designed for heavy vehicles. Practical, reliable and easy to use. Air powered ascent
and descent, Yak jacks are fitted with two descent valves to guarantee perfect holding in all situations
and controlled speed under load. Ideal for workshops, mobile workshops, tyre repairers and bodywork
shops. All YAK jacks come with extensions as standard.

Technical Data

Capacity: 80/50/25/15 t   /   88.2/55.1/27.6/16.5 ton
Net weight: 77 Kg   /   170 lb
Working air pressure: 8-10 bar   /   116-145 psi
Air consumption: 600 nl/min
Max stroke: 300 mm   /   11.8 in
Min. height: 180 mm   /   7.1 in
Number of pistons: 4
Pistons stroke: 65 – 72 – 72 – 91 mm   /   2.6 – 2.8 – 2.8 – 3.6 in

Jack applications

Road Tractors
Semi Trailers
Articulated Lorries
Special Vehicles
Mechanical Shovels
Dumpers
Lorry Mounted Cranes
Tanks
Trains

Compatible accessories

A02419 – Extension
A02417 – Extension
A02361 – Plate
A00875 – Plate
A00873 – Plate
A02410 – Extension
A02406 – Extension
A02354 – Plate

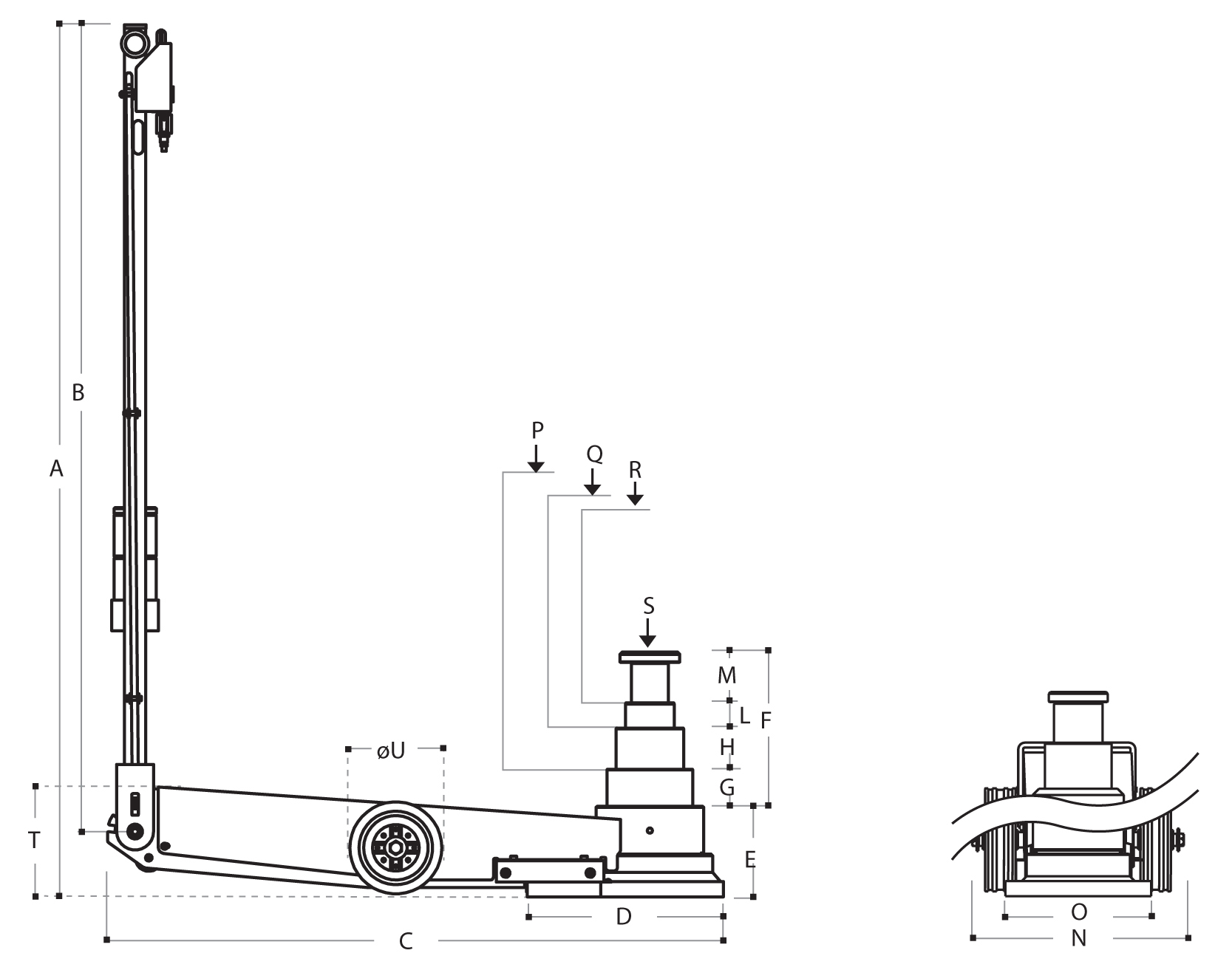

size and dimensions

A: 1430 mm/t  /  56.30 in/ton
B: 1320 mm/t  /  51.97 in/ton
C: 1000 mm/t  /  39.37 in/ton
D: 320 mm/t  /  12.6 in/ton
E: 180 mm/t  /  7.09 in/ton
F: 300 mm/t  /  11.81 in/ton
G: 65 mm/t  /  2.56 in/ton
H: 72 mm/t  /  2.83 in/ton
L: 72 mm/t  /  2.83 in/ton
M: 91 mm/t  /  3.58 in/ton
N: 350 mm/t  /  13.78 in/ton
O: 240 mm/t  /  21.65 in/ton
P: 80 mm/t  /  88 in/ton
Q: 50 mm/t  /  55 in/ton
R: 25 mm/t  /  28 in/ton
S: 15 mm/t  /  17 in/ton
