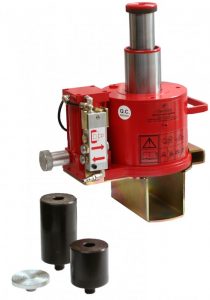

YAK 303/T – air-hydraulic pit jack

Air hydraulic pit jacks for use on jacking beams. Descent with a manual valve. The adaptor for jacking
beams and easy access to the controls make it simple to use when working in a pit or under a column
lift. The related jacking beam can be supplied on request. Ideal for workshops.

Technical Data

Capacity: 30/15 t   /   33.1/16.5 ton
Net weight: 37 Kg   /   82 lb
Working air pressure: 8-10 bar   /   116-145 psi
Air consumption: 400 nl/min
Max stroke: 250 mm   /   9.8 in
Min. height: 22 mm   /   8.7 in
Number of pistons: 2
Pistons stroke: 124 – 126 mm   /   4.9 – 5 in

Jack applications

Semi Trailers
Special Vehicles
Articulated Lorries
Buses
Lorries
Lorry Mounted Cranes
Semi Trailers
Road Tractors

Compatible accessories

A04270 – Plate
A04276 – Plate
A00222 – Jacking beam
A02419 – Extension
A02417 – Extension
A02361 – Plate
A02410 – Extension
A02406 – Extension
A02354 – Plate

size and dimensions

A: 365 mm/t  /  14.37 in/ton
B: 100 mm/t  /  3.94 in/ton
C: 110 mm/t  /  4.33 in/ton
D: 222 mm/t  /  8.74 in/ton
E: 124 mm/t  /  4.88 in/ton
F: 126 mm/t  /  4.96 in/ton
G: 250 mm/t  /  9.84 in/ton
H: 204 mm/t  /  8.03 in/ton
K: 30 mm/t  /  33 in/ton
L: 15 mm/t  /  17 in/ton
